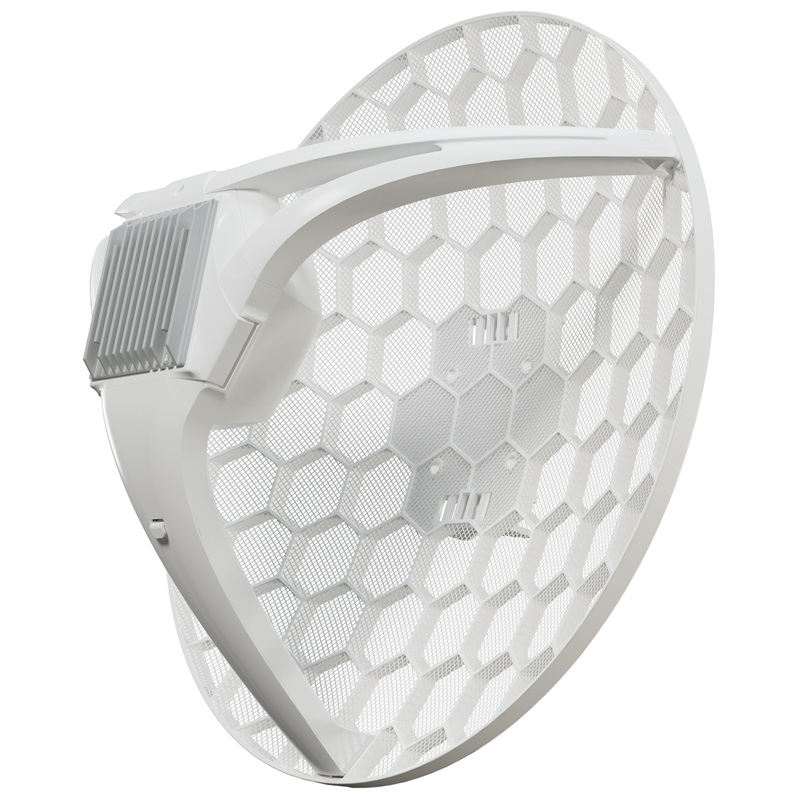

MikroTik LHG LTE6 Kit – Outdoor LTE CPE with High-Gain Antenna

2 in stock
CanPay BNPL
Buy now, pay later with CanPay

3,200.00

2 in stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Talk to us

+233 53 828 0773Lets have a chat

Low Prices

Price match guarantee

Easy Returns.

Quick & Hassle Free

Category:
Brand:

Description

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large, high-gain antenna, the LHG LTE6 kit can connect to cell towers in extreme rural locations, enabling you to provide last-mile internet access where nothing else is available.

The new LHG LTE6 kit features a CAT6 LTE modem that supports carrier aggregation, enabling the device to use multiple bands simultaneously. A huge advantage when there are many LTE users in the area. It provides better responsiveness in crowded environments and higher efficiency in weak-signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

Specification

Specifications
  • Product codeRBLHGR&R11e-LTE6
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • RouterOS license3
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200’000 hours at 25C
  • Tested ambient temperature-30°C to 60°C
Powering
  • Number of DC inputs1 (PoE-IN)
  • Max power consumption6 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage12-57 V
Mobile
  • 2G CategoryClass12
  • 2G bands2 (1900MHz)
    3 (1800MHz)
    5 (850MHz)
    8 (900MHz)
  • 3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
  • 3G bands1 (2100MHz)
    2 (1900MHz)
    5 (850MHz)
    8 (900MHz)
  • LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
  • LTE FDD bands1 (2100MHz)
    2 (1900MHz)
    3 (1800MHz)
    5 (850MHz)
    7 (2600MHz)
    8 (900 MHz)
    12 (700MHz)
    17 (700MHz)
    20 (800MHz)
    25 (1900MHz)
    26 (850MHz)
  • LTE TDD bands38 (2600MHz)
    39 (1900MHz)
    40 (2300MHz)
    41n (2500MHz)
  • TAC35666210
Ethernet
  • 10/100 Ethernet ports1
Peripherals
  • Number of SIM slots1 Modem (Micro SIM)
  • MiniPCI-e slots1
Other
  • Mode buttonYes
Certification & Approvals
  • CertificationCE, EAC, ROHS
  • IPIP54
